Model

-

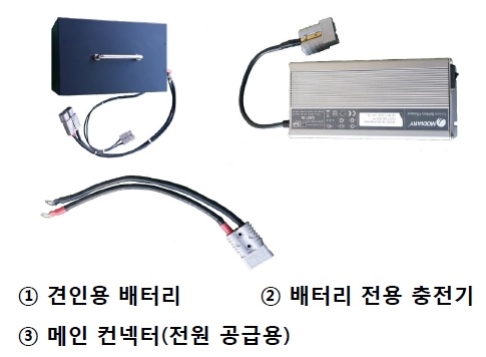

견인용 배터리

Nominal Capacity

Ah

20.0

Nominal voltage

V

48

Dimension

Thickness

mm

200

± 5.0

Width

mm

200

± 5.0

Length

mm

320

± 5.0

Weight

Kg

10

± 5.0

Charging current

Nominal

A

10

( 0.5 C)

Continuous. Max

A

20

( 1.0 C )

Discharging current

Nominal

A

20

( 1.0 C)

Max Current

A

200

( 10.0 C )

Operating temperature (Discharge)

°C

-20  ~  60°C

Cycle life

-

Ret 80% after 1000 cycle

      (1.0C charging/1.0C discharging, @23±3°C.

      Swing  between SOC 100 % ~ SOC 0%)

-
